Automatic air conditioning service station for hybrid systems BD-093
-10 %
Automatic air conditioning service station for hybrid systems BD-093
- SKU: BD16985
- SKU:: AIR-093
1,899.00 €
2,099.00 €
Papildomai galite užsakyti:
| 17.93 € | Cuff set for air conditioner repair (HNBR, 225 pcs) | |||
| 969.00 € | 1,125.00 € | Refrigerant R-134a composition identifier BD86 |
Send Message
Inquiry for the Vilnius region
Description

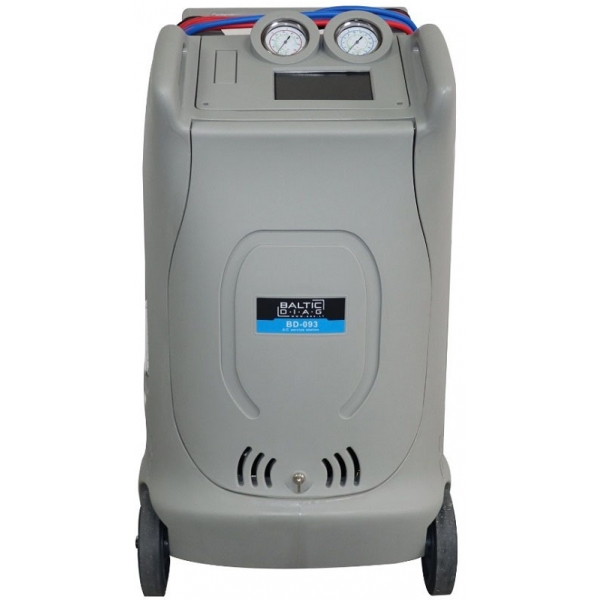

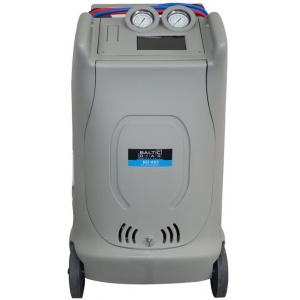

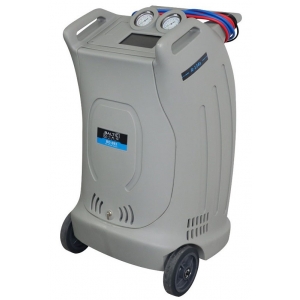

Automatic Air Conditioning Service Station for Hybrid Systems BD-093
Country of origin: China, warranty period – 24 months
The BD-093 is a universal, modern, and professional fully automatic air conditioning service station specifically designed for hybrid vehicles. It is ideally suited for auto repair shops servicing the latest generation of vehicles that use specialized components and oils (such as POE) for sensitive electric motors and high-voltage systems. This unit ensures safe, precise, and fully automatic maintenance of A/C systems—from refrigerant recovery to vacuuming and oil injection.
Features:
- Fully automatic operating mode
- Designed for servicing A/C systems in hybrid vehicles
- Refrigerant recovery, vacuuming, oil injection, and charging
- Integrated POE oil container (for electric systems)
- Equipped with a heating belt, cooling fan, and condensate filter
- Automatic maintenance reminder
- Built-in database with free updates
- High-quality pump and pipe system
- Easy operation via 7-inch touch screen
Technical Specifications:
- Power supply: 230 V / 50 Hz / 1 phase
- Display: 7" touch screen
- Refrigerant type: R-134a
- Compressor power: 3/8 HP
- Recovery efficiency: ≥96%
- Average refrigerant recovery speed: 0.25 kg/min
- Vacuum pump capacity: 60 l/min
- Refrigerant tank capacity: 10 kg
- Refrigerant charging accuracy: ±10 g
- New oil container: 250 ml
- Used oil container: 400 ml
- Oil dosing accuracy: ±5 g
- Dryer filter capacity: 600 ml
- Maximum working pressure: 20 bar
- High pressure gauge range: -1 to 30 bar
- Low pressure gauge range: -1 to 16 bar
- Maximum refrigerant charging speed: 2 kg/min
- Weight: 88 kg
- Dimensions: 600 x 600 x 1050 mm
- Package dimensions: 710 x 690 x 1180 mm
