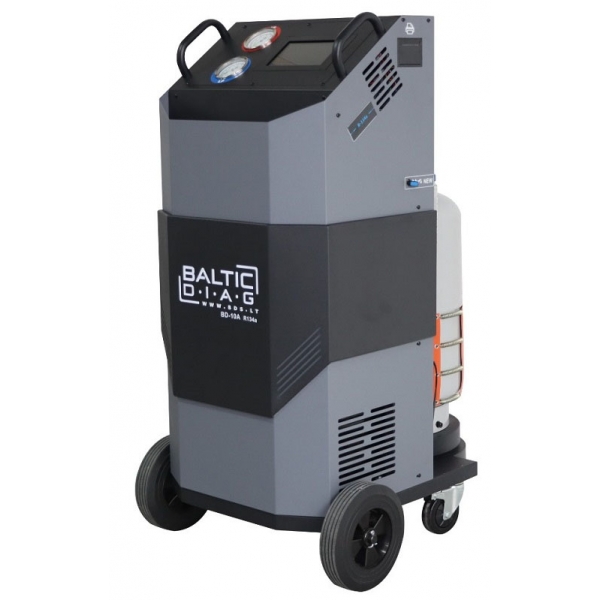

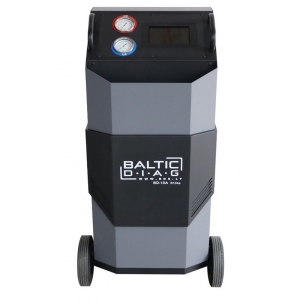

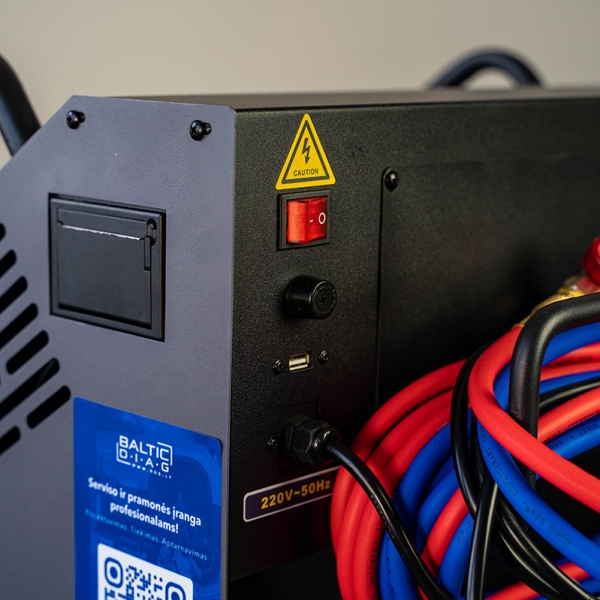

Automatic filling station for heavy transport conditioners BD-10A

Automatic filling station for bus and truck conditioners BD-10A, R134A

The BD-10A air conditioner filling station has a solid and reliable design, designed to meet all the requirements in bus and truck air conditioner filling processes. Using it, you will be able to fill air conditioning systems of not only buses, trucks, but also passenger cars, agricultural, construction, commercial, railway and other vehicles that use R134a refrigerant.

Key Features:

• Recovery
• Vacuuming

• Oil injection
• Refrigerant filling
• Fully automatic mode

Features:

• Heating tape
• Automatic control valves
• Filling hose flushing program
• Integrated equipment pipelines
• Integrated electronic scales for oil tanks
• Condensing and cooling fan installed
• Integrated printer

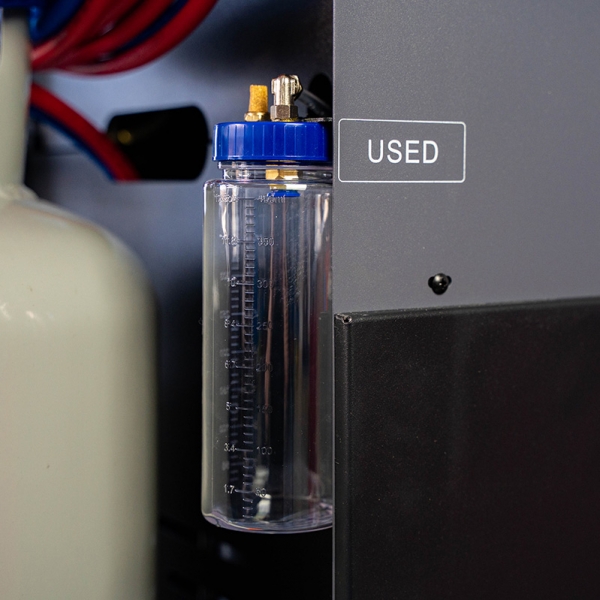

• The necessary pressure is created to extract the used oil
• Leakage check by vacuuming the car air conditioning systems
• Automatic service reminder
• Simple calibration of electronic scales
• Various language control menu
• When used in conjunction with additional equipment, this air conditioning filling station can work with electric cars and hybrid cars


Technical parameters:

• Supply voltage: 230 V / 50 - 60 Hz / 1 fz
• Extraction efficiency: > 95%
• Compressor power: 1 HP
• Vacuum pump performance: 240 l/min
• Compatible with refrigerant: R134a
• Refrigerant scale accuracy: ± 30 g

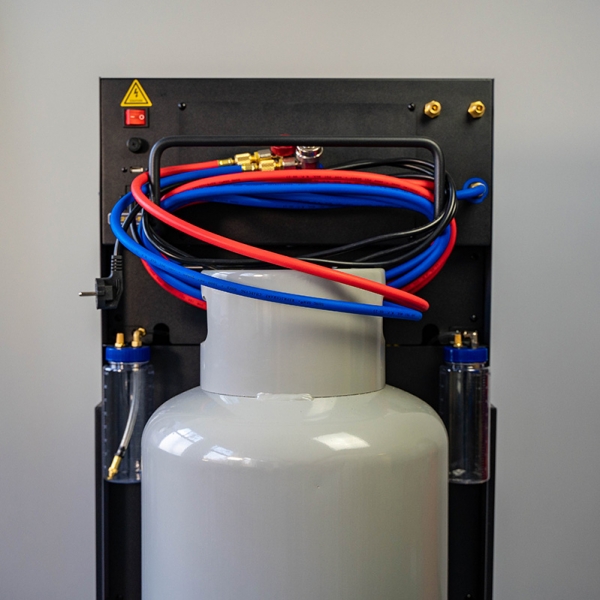

• Refrigerant cylinder capacity: 50 kg
• Number of oil bottles: 2 vnt.
• Oil capacity sizes: 400 ml
• Maximum pressure: 20 bar
• Agent filling speed: 2 kg/min (Max.)

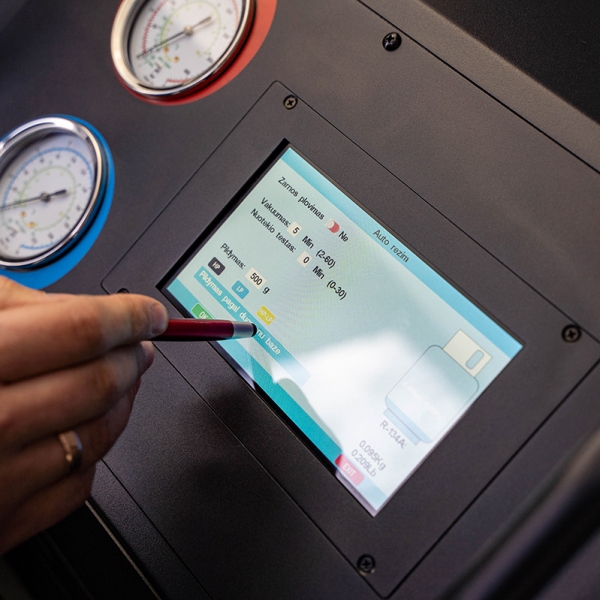

• Screen: 7" inches, touch screen
• Hose length: 5 m

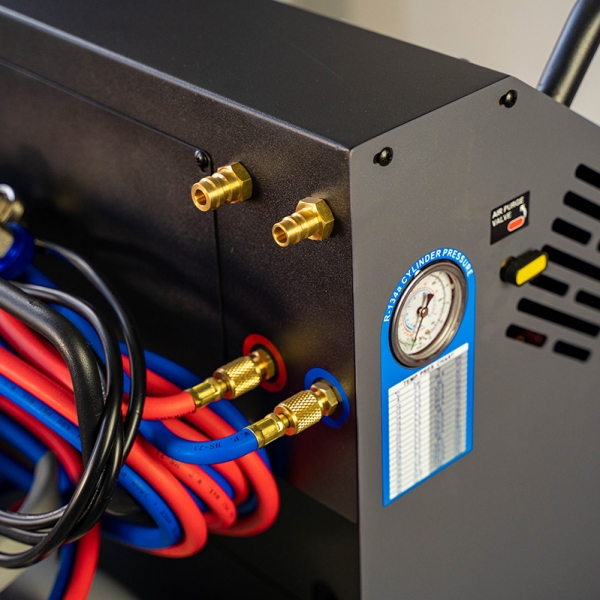

• High pressure manometer: 1 ~ 30 bar
• Low pressure manometer: 1 ~ 16 bar
• Average refrigerant extraction rate: 980 g/min
• Dimensions: 630 x 670 x 1060 mm
• Package dimensions: 750 x 670 x 1160 mm
