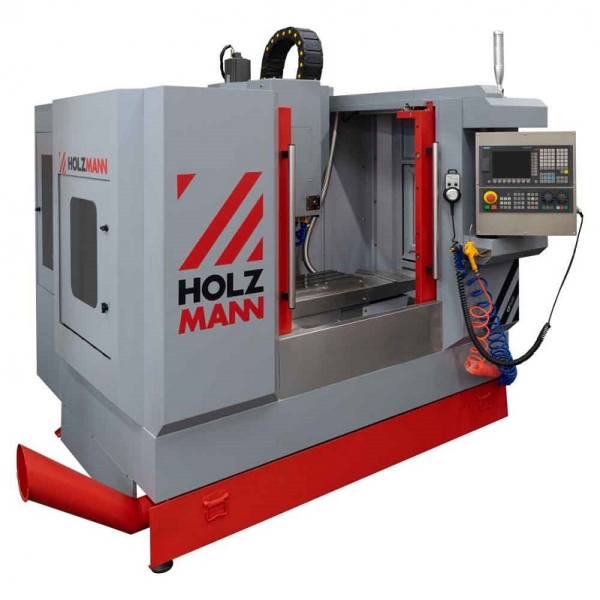

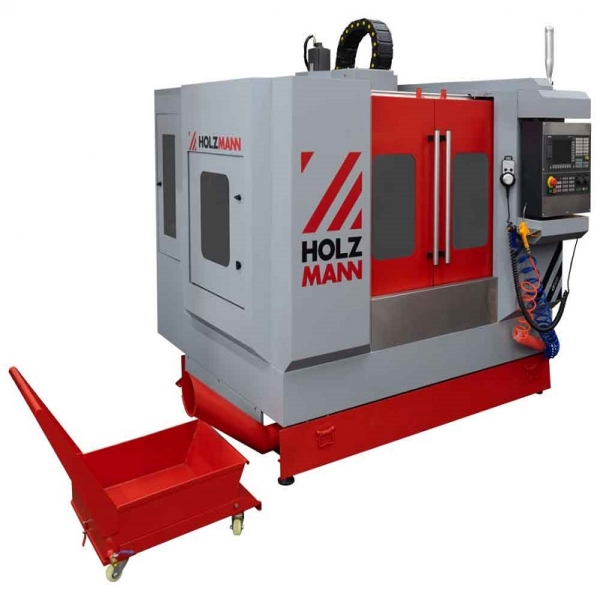

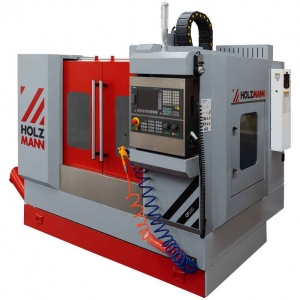

CNC Milling Machine for Metalworking HOLZMANN CF500

CNC Milling Machine for Metalworking HOLZMANN CF500

Country of Origin: Austria, warranty period - 24 months

The HOLZMANN CF500 CNC milling machine is an advanced device designed for precise and efficient metalworking. Featuring the Siemens 808D Advanced control system, a 12-position tool carousel, and modern cooling and lubrication systems, this machine is ideal for professional workshops or training centers.

Features:

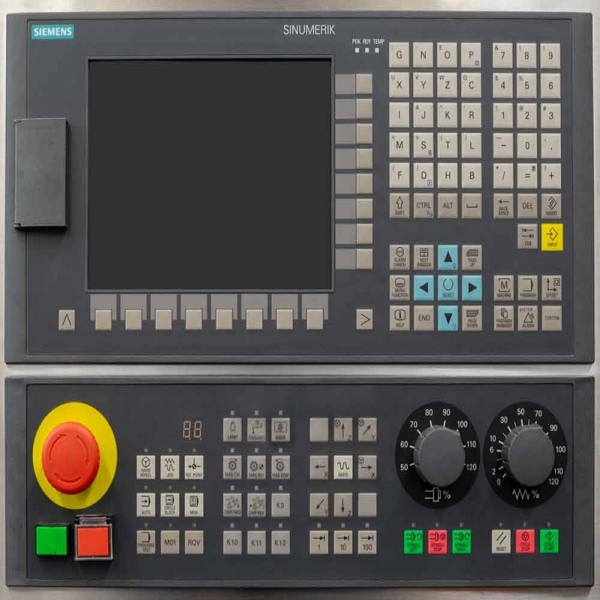

• Siemens 808D Advanced control system for precise operation.

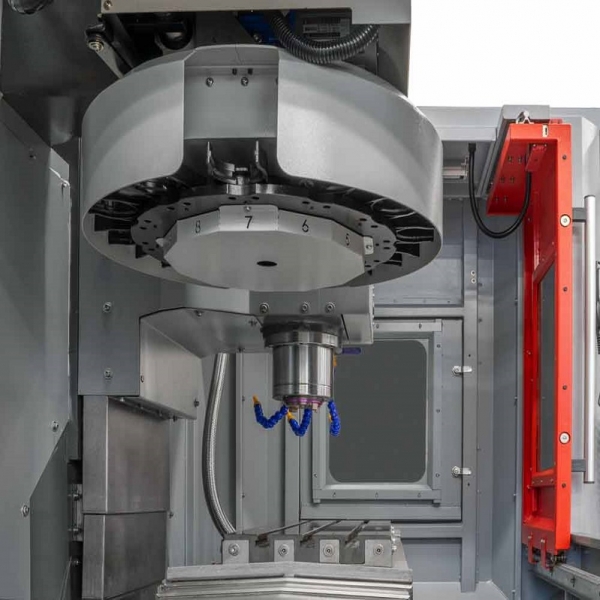

• 12-position tool carousel for quick tool changes (3 s).

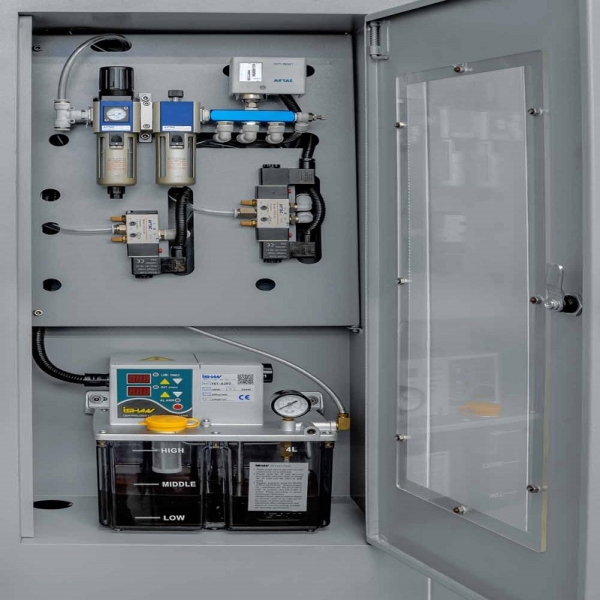

• Central lubrication system (4-liter capacity).
• Integrated cooling system (17-liter capacity).
• Automatic and rapid feed on X, Y, and Z axes.
• Spindle speed up to 10,000 rpm.

Technical Specifications:

Motor Data:

• Voltage: 400 V / 50 Hz.
• Spindle motor power: 5.5 kW (35 Nm).

Working Parameters:

• X-axis travel: 500 mm.
• Y-axis travel: 350 mm.
• Z-axis travel: 450 mm.
• Spindle speed: up to 10,000 rpm.
• Maximum drilling capacity: Ø20 mm.
• Maximum thread size: M16.
• Milling adapter: BT40.
• Maximum distance between spindle and table: 100–550 mm.
• Maximum table load: 200 kg.

Accuracy:

• Positioning accuracy: +/- 0.01 mm.
• Repeatability accuracy: +/- 0.015 mm.

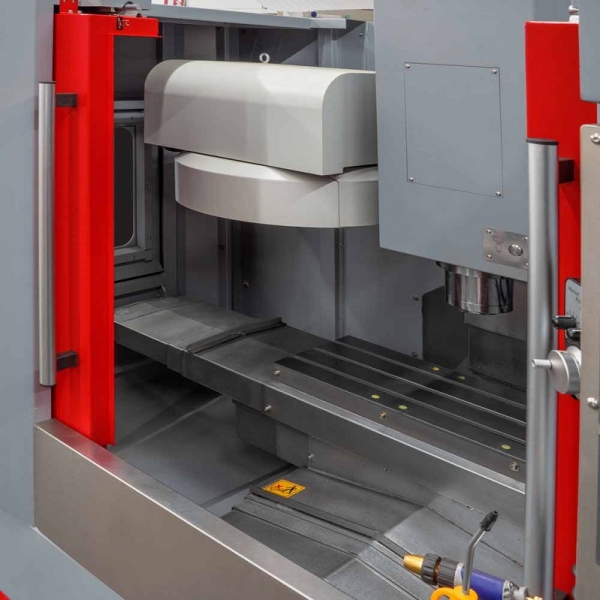

Table Specifications:

• Table size: 800 x 260 mm.
• T-slots: 16 mm.

Weight:

• Net weight: 2200 kg.
• Gross weight: 2600 kg.

Packaging:

• Packaging width (mm): 1850.
• Packaging length (mm): 2200.
• Packaging height (mm): 2400.
