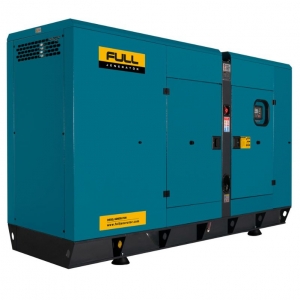

Diesel generator FULL FG 550 with 400 kW prime power

Diesel Generator FULL FG 550 with 400 kW Prime Power

Country of origin: Turkey, warranty period – 24 months

The FULL FG 550 is an extremely powerful three-phase diesel generator designed for professional and long-term use wherever stable and reliable electricity supply is critical – in industry, construction, or infrastructure applications. This model is equipped with a V-type 12-cylinder turbocharged engine (SD27G612TLD) with a displacement of 26.6 liters, direct injection, and a water cooling system. A soundproof canopy, a large 1300-liter fuel tank, electronic control system, and advanced solutions for automatic voltage regulation and vibration damping make this generator not only powerful but also a reliable energy source even under the most demanding conditions.

Features:

• Maximum standby power: 550 kVA (440 kW)
• Continuous prime power: 500 kVA (400 kW)
• Turbocharged engine with intercooler and direct injection
• 12-cylinder V-type engine (26.6 L displacement)
• Operating speed: 1500 RPM (50 Hz frequency)
• Large 1300-liter fuel tank
• Fuel consumption: 113.6 l/h (full load), 58.7 l/h (50% load)
• Electronic speed governor
• Sound-insulated canopy with observation window
• Anti-corrosion powder coating, weather-resistant
• Certified to CE, ISO, and EAC standards
• Vibration-dampening mounts and emergency STOP button

Technical Specifications:

Engine:

• Model: SD27G612TLD
• Number of cylinders: 12 (V-type)
• Injection system: Direct
• Compression ratio: 16:1
• Displacement: 26.6 L
• Bore: 135 mm
• Stroke: 155 mm
• Air intake: Turbocharged + Intercooled
• Speed: 1500 RPM
• Oil capacity: 48 L
• Coolant capacity: 151 L
• Fuel type: Euro diesel

Alternator:

• Model: FLL355CSL
• Power: 578 kVA
• Voltage: 400 V
• Phases: 3
• Frequency: 50 Hz
• Voltage regulation: ±1%
• Insulation class: H
• Protection rating: IP23
• Power factor: 0.8

Dimensions and Weight:

With soundproof canopy:

• Length: 4500 mm
• Width: 1900 mm
• Height: 2550 mm
• Weight: 5500 kg

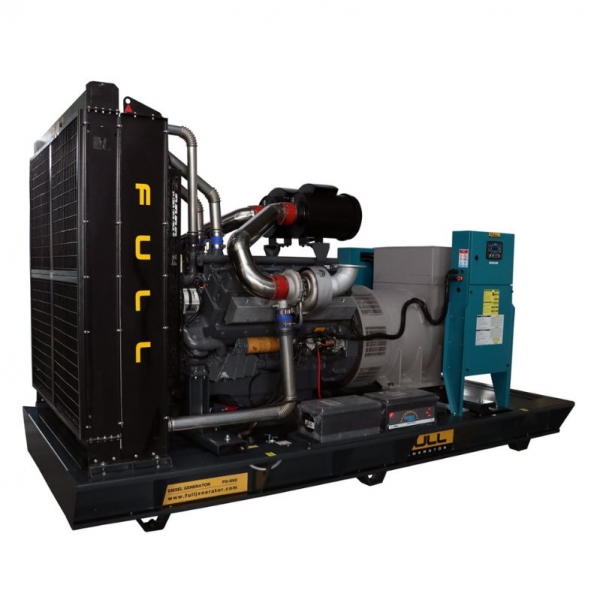

Open type:

• Length: 3850 mm
• Width: 1900 mm
• Height: 2900 mm
• Weight: 4700 kg
• Fuel tank capacity: 1300 L
