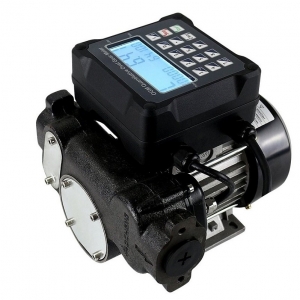

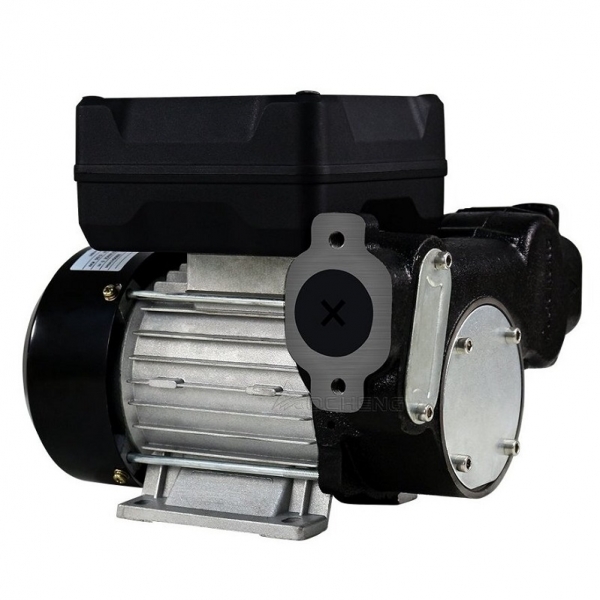

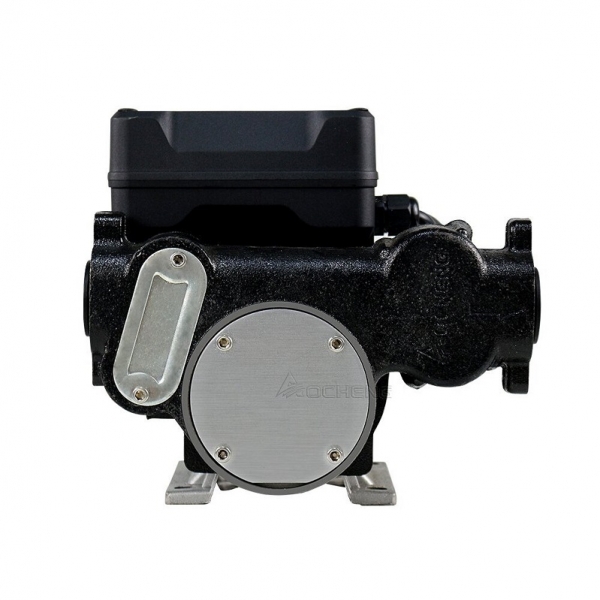

Diesel transfer pump with digital meter 220V

Diesel Transfer Pump with Digital Meter 220V

Country of Origin: China, warranty period - 24 months

Within the range of diesel transfer pumps, this electric pump features a bypass valve that allows precise regulation of the flow rate during dosing when the flow is up to 40 l/min. Equipped with a vane pump with a heat-treated steel rotor, acetal resin vanes, and an induction motor with an aluminum housing, this diesel electric pump is suitable for continuous operation requiring a reliable and high-quality product. The IP55 thermal protection safeguards it against motor overload.

Suitable for Diesel and Kerosene

Features:

• Pump with a bypass valve for precise flow control.
• Induction motor with an aluminum housing ensures durability.
• Integrated IP55 thermal protection prevents overloads.

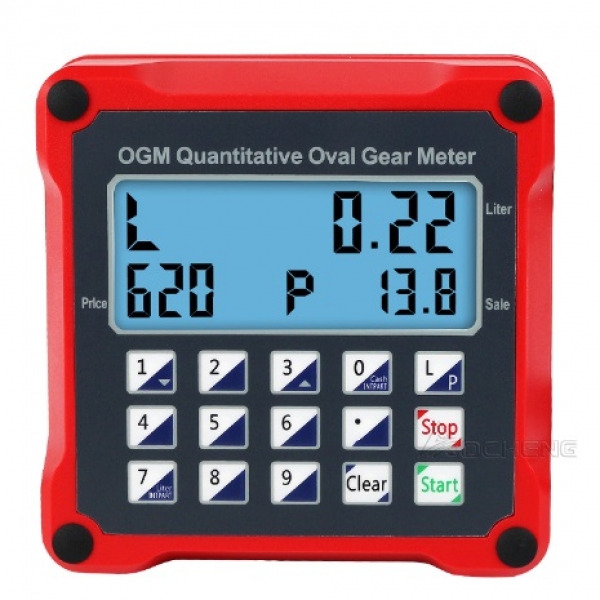

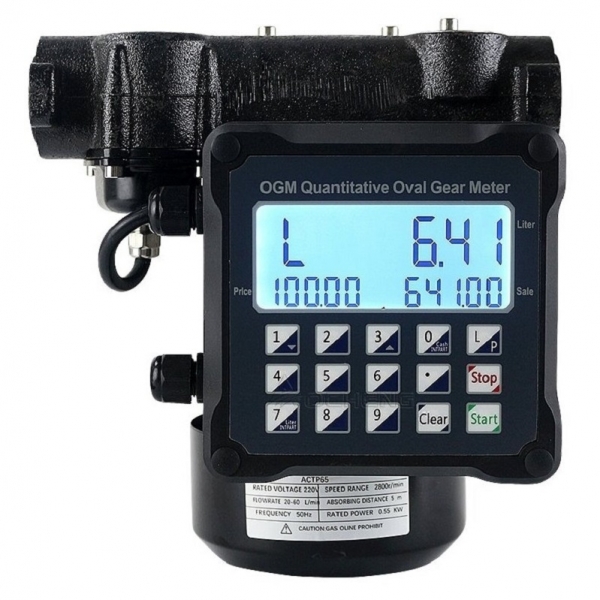

• Digital OGM meter with an LCD display – shows refueling quantity, unit price, and fuel flow.
• Compatible with diesel, kerosene, and bio-diesel-compatible chemical substances.
• Suitable for pumps for gasoline, diesel, or bio-diesel-compatible chemicals.

Technical Specifications:

• Protection: IP55
• Power: 550 W
• Flow rate: 20–80 l/min
• Maximum suction hose length: 5 m
• Maximum pressure: 3 bar
• Motor speed: 1400 rpm
• Duty cycle: up to 30 min
• Idle running time: up to 3 min
• Meter flow capacity: 1–120 l/min
• Maximum working pressure: 18 bar
• Accuracy: ±0.5%
• Connection: BSPF 1" (33.25 mm)
• Housing material: Stainless steel
