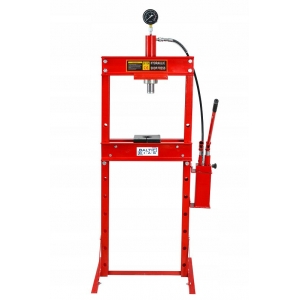

Hydraulic press 20 tons with manometer

Hydraulic press with pressure gauge 20 tons

Country of origin: China, warranty period - 24 months

This 20-ton hydraulic press with a pressure gauge is designed for professional pressing, removing, installing, and other technical operations on various components. It is ideal for use in industrial applications as well as repair workshops. The press uses hydraulic oil, which—via the piston—ensures precise and even pressure. Thanks to the dual manual pump, the pressing force can be effectively controlled and adjusted to specific tasks. Its reliable construction and high pressing force allow for safe, accurate, and economical operation.

Functions:

• Suitable for pressing, extracting, removing, installing, and other operations
• Dual manual pump for precise and easily controlled pressure
• Pressure gauge for monitoring pressing force
• Even pressure across the entire surface ensures high-quality results
• High-efficiency device with minimal energy consumption

Technical specifications:

• Control: manual
• Maximum capacity: 20 tons
• Piston stroke: 145 mm

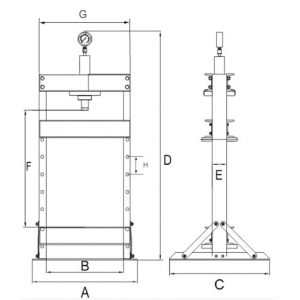

• Height (D): 1800 mm
• Working range (F): 0–1100 mm
• Frame width (G): 600 mm
• Clear space between columns (B): 500 mm
• Base width (A): 700 mm
• Base length (C): 705 mm
• Column thickness (E): 100 mm
• Workbench hole spacing (H): 145 mm
• Weight: 87 kg

Before using the press, make sure to loosen the breather screw on the hydraulic pump!
