Key and immobilizer programming device Autel MaxiIM IM508S

Key and immobilizer programming device AUTEL MaxiIM IM508S

A universal solution for immobilizer and key programming.

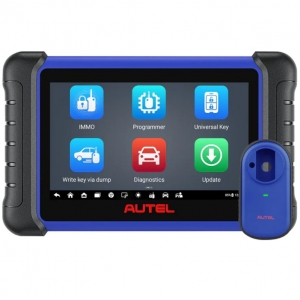

AUTEL MaxiIM IM508S is an intelligent and affordable solution for service technicians looking for reliable equipment for key programming and immobilizer system maintenance. This device combines an intuitive Android-based tablet, an advanced XP200 key programmer and professional diagnostics into a single system. With the IM508S, you can perform both basic and advanced IMMO functions and service more than 80 vehicle brands from the US, Europe and Asia — all with one device.

Why choose AUTEL MaxiIM IM508S?

• Comprehensive IMMO system in one device.
• Perform key learning, transponder writing, ECU adaptations, PIN code reading and many other functions.

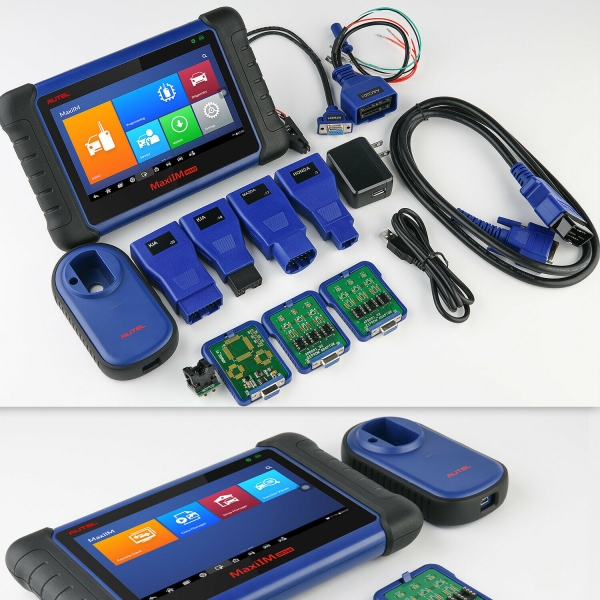

• Advanced XP200 programmer included.
• A reliable key programming solution is already included in the set — no additional investment required.
• Fast full-system diagnostics.
• Professional OE-level module scanning and servicing for more than 80 car manufacturers.
• User-friendly interface.
• Android operating system, 7-inch touchscreen and intuitive navigation make it easy to get started without a complicated learning process.
• Mobile and reliable device.
• Powerful quad-core processor, 64 GB memory and lightweight design make this device ideal for daily use both in the workshop and on the go.
• Additional service functions.

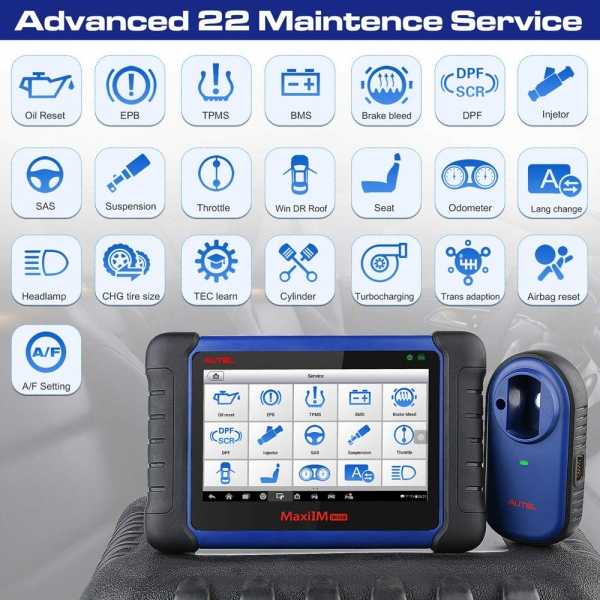

• EPB, DPF, SAS, oil service and battery BMS functions in one device.

Features:

• Powerful tablet-grade processor.
• 7" LCD capacitive touchscreen with 1024 × 600 resolution.
• 64 GB internal storage.
• Android operating system for quick startup and convenient multitasking.
• Impressive combination of key programming, full-system diagnostics and advanced maintenance features.
• Smart Mode for step-by-step and automated key learning.
• Advanced Mode for expert-level key programming.
• PIN/CS reading, including all keys lost situations, key generation, key programming and remote learning.
• IMMO ECU rewriting, adaptation, reset and coding.
• Transponder reading/writing, EEPROM/MCU reading/writing.
• Strong OE-level diagnostics for more than 80 brands and models across US, Asian and European markets.
• Advanced maintenance functions, including EPB, DPF, SAS, oil service and BMS functions.

Technical specifications:

• Operating system: Android 11.0;
• Processor: quad-core, 1.8 GHz (A55);
• Internal storage: 64 GB;
• Display: 7" LCD capacitive touchscreen with 1024 × 600 resolution;
• RAM: 4 GB;
• Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card with support up to 64 GB;
• Sensors: light sensor for automatic screen brightness adjustment;
• Audio output: speaker;
• Power supply: 3.7 V / 5000 mAh lithium polymer battery;
• Charging: via 5 V DC power supply;
• Operating time: approximately 4.5 hours of continuous use;
• Charging voltage: 12 V;
• Power consumption: 500 mA, standard LCD brightness, Wi-Fi enabled;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -20 °C to +60 °C;
• Humidity: 5–95 %, non-condensing;
• Weight: 0.788 kg;
• Supported protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6.

Who is this device for?

• AUTEL MaxiIM IM508S is an excellent choice for automotive workshops, independent technicians and key programming specialists looking for a powerful yet affordable solution for both IMMO functions and professional diagnostics. It is ideal for everyday repair jobs as well as more advanced system procedures.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Work more efficiently — with tools designed for the modern IMMO specialist!

• Try AUTEL MaxiIM IM508S in your workshop — a practical solution that saves time and improves productivity. Contact us today — we will help you choose the most suitable option for your business.
