Key and immobilizer programming device Autel MaxiIM IM508S Kit

Key and immobilizer programming device AUTEL MaxiIM IM508S Kit

A universal solution for advanced key programming and diagnostics.

The AUTEL MaxiIM IM508S Kit is a complete solution for key programming and immobilizer system servicing, combining the IM508S tablet device with the advanced XP400 programmer. This kit allows you to perform both routine and complex IMMO and diagnostic tasks without the need for additional equipment. It is the perfect choice for those looking for a reliable, efficient and cost-effective tool in one complete package — without compromise.

Why choose the AUTEL MaxiIM IM508S Kit?

• Full IMMO functionality in one kit.
• The device supports a wide range of key programming, transponder writing, PIN code reading, ECU adaptation and other functions.
• XP400 programmer included.
• No need to purchase it separately — the XP400 enables advanced chip and key programming functions.
• Professional diagnostics for more than 80 vehicle brands.
• OE-level diagnostics for all main vehicle modules — fast and accurate.
• User-friendly and intuitive operation.
• A 7-inch touchscreen, Android operating system and smart interface allow you to start working immediately.
• Mobile and reliable solution.
• A compact and lightweight body, powerful processor and durable battery make this kit suitable for both workshop use and on-site jobs.
• Service functions in one device.
• Oil service, DPF, EPB, SAS, BMS and other functions — more possibilities without additional equipment.

Features:

• Powerful tablet-grade processor.
• 7" LCD touchscreen with 1024 × 600 resolution.
• 64 GB internal storage.
• Android operating system for fast startup and convenient multitasking.
• Impressive combination of key programming, full-system diagnostics and advanced service functions.
• Smart Mode for guided, step-by-step key learning.
• Advanced Mode for expert-level key programming.
• PIN/CS reading, including all keys lost situations, key generation, key programming and remote learning.
• IMMO ECU rewriting, adaptation, reset and coding.
• Transponder reading/writing, EEPROM/MCU reading/writing.
• Strong OE-level diagnostics for more than 80 vehicle brands from the US, Asia and Europe.
• Advanced service functions, including EPB, DPF, SAS, oil service and BMS services.

Technical specifications:

• Operating system: Android 11.0;
• Processor: quad-core, 1.8 GHz (A55);
• Internal storage: 64 GB;
• Display: 7-inch LCD capacitive touchscreen with 1024 × 600 resolution;
• RAM: 4 GB;
• Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card with support up to 64 GB;
• Sensors: light sensor for automatic screen brightness adjustment;
• Audio output: speaker;
• Power supply: 3.7 V / 5000 mAh lithium-polymer battery;
• Charging: via 5 V DC power supply;
• Operating time: approximately 4.5 hours of continuous use;
• Charging voltage: 12 V;
• Power consumption: 500 mA, standard screen brightness, Wi-Fi enabled;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -20 °C to +60 °C;
• Humidity: 5–95 %, non-condensing;
• Weight: 0.788 kg;
• Supported protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6.

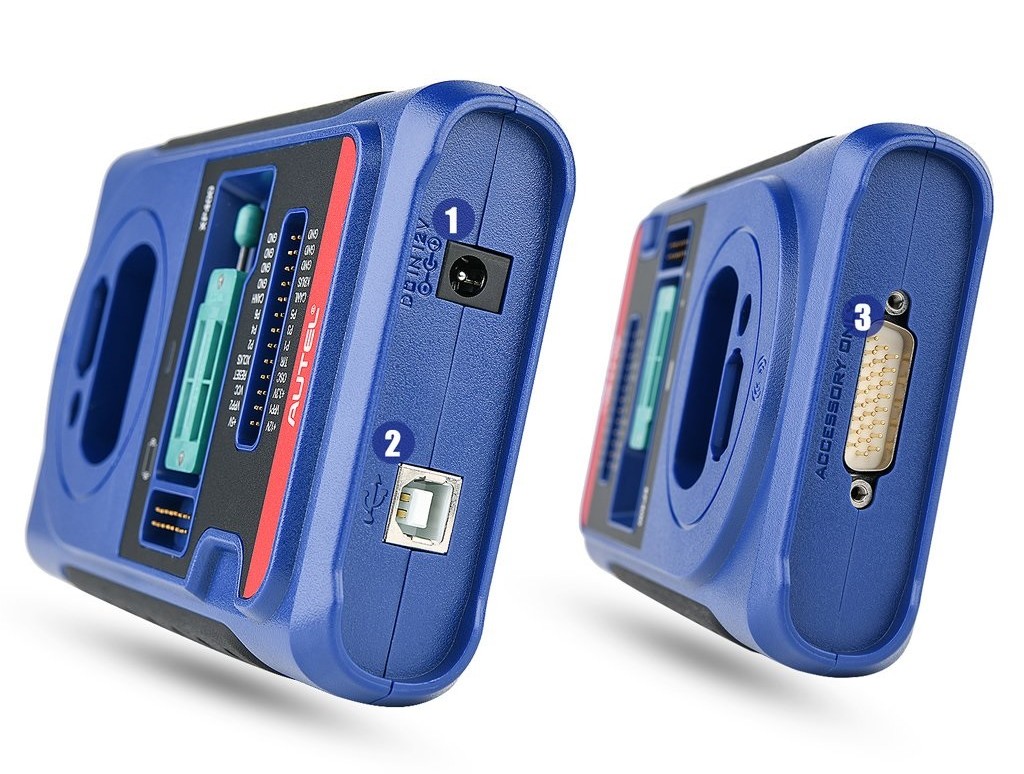

XP400 programmer description:

• PC interface supported.
• MCU / EEPROM chip reading and writing.
• ECU reading and writing.
• MC9S12 encrypted chip reading and writing.
• Key reading and writing.
• Mercedes infrared key reading and writing.
• Frequency detection.
• IC card reading and writing.

Who is this device for?

• The AUTEL MaxiIM IM508S Kit is designed for auto workshops, independent technicians and key or immobilizer programming specialists. This solution is ideal for both daily work and more complex procedures that require precision, functionality and speed in one device.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic and programming equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Work more efficiently — with a tool that brings together all the essential features!

• Try the AUTEL MaxiIM IM508S Kit in your workshop — a smart and practical solution for professional IMMO and key programming. Contact us — we will help you choose the most suitable kit for your business.
