Milling Machine for Metalworking HOLZMANN ZX7045PRO

Milling Machine for Metalworking HOLZMANN ZX7045PRO

Country of Origin: Austria, warranty period - 24 months

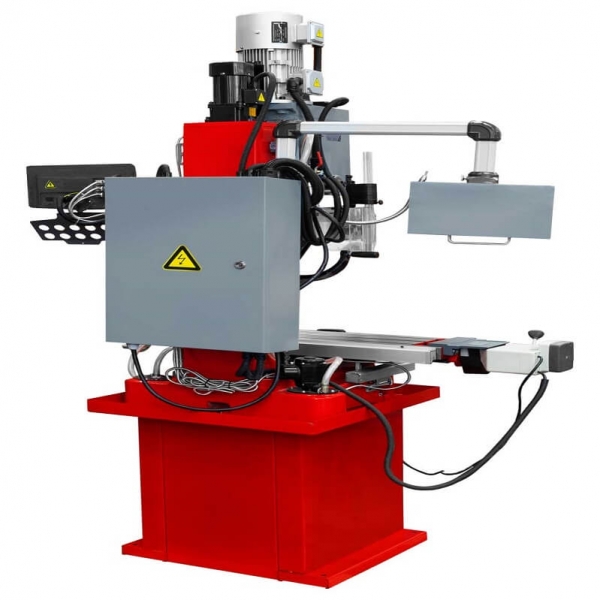

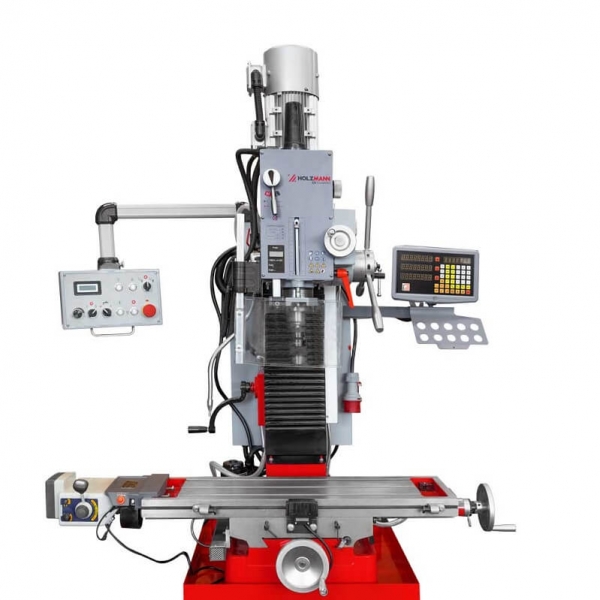

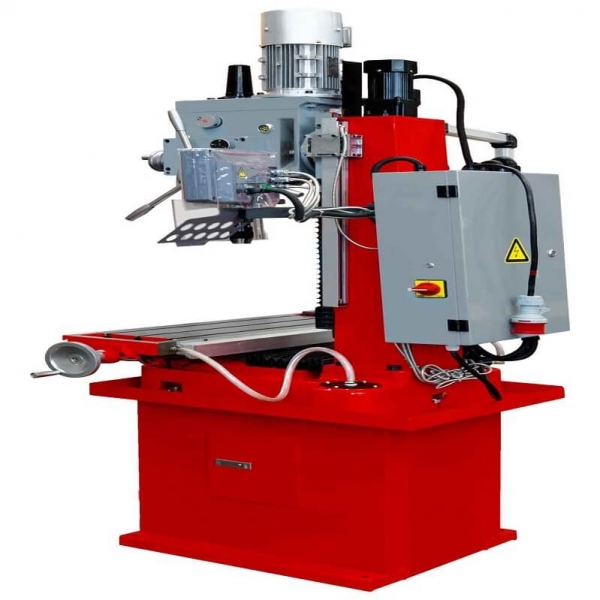

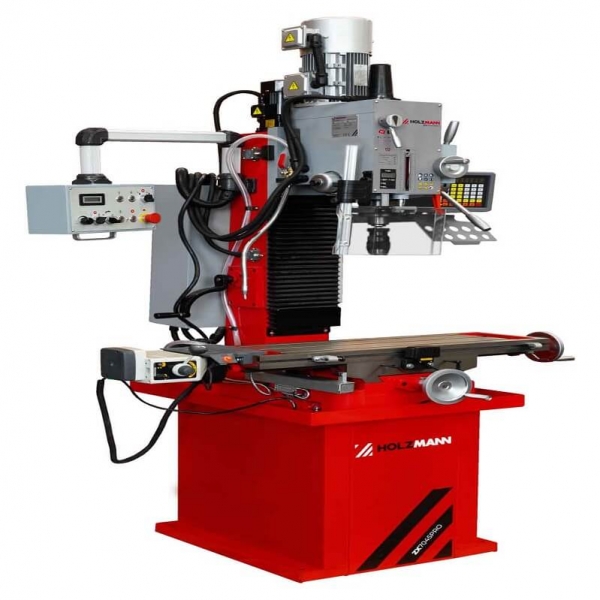

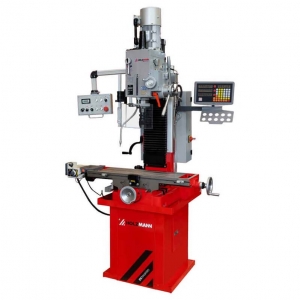

The HOLZMANN ZX7045PRO milling machine is a powerful and precise device designed for professional metal drilling and milling. Equipped with a built-in base, 3-axis digital readout (DRO), cooling system, and automatic X-axis feed, this machine ensures comfortable and efficient operation in workshops.

Features:

• Electric height adjustment of the milling head.
• X-axis feed motor for automatic operations.

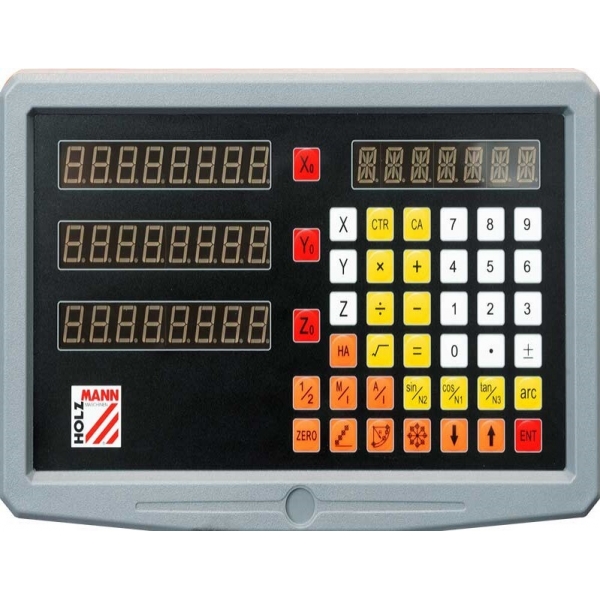

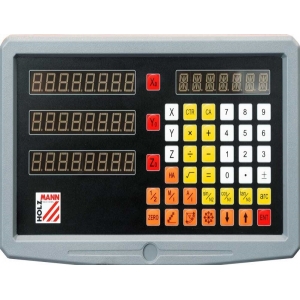

• 3-axis digital readout (DRO) for precise control.
• Table with a wide range of travel (X, Y, Z axes).
• Cooling pump for efficient cooling during drilling or milling.
• Wide speed range for both drilling and milling.

Technical Specifications:

Motor Data:

• Motor Power S1: 1500 W.
• Voltage: 400 V / 50 Hz.

Dimensions:

• Total Dimensions (mm): 1360 x 960 x 2110.
• Working Parameters:
• Maximum drilling capacity in steel: Ø32 mm.
• Maximum drilling capacity in cast iron: Ø45 mm.
• Maximum thread size: M20.
• Milling adapter: MK4/MT4.
• Milling spindle speed (rpm): (I): 75-438, (II): 438-2500.
• Maximum end mill diameter: Ø28 mm.
• Maximum face mill diameter: Ø80 mm.
• T-slots: 14 mm.
• Milling spindle swivel: +/-90°.

Working Travels:

• X-axis: 560 mm (manual) / 480 mm (automatic).
• Y-axis: 190 mm.
• Z-axis: 420 mm (manual) / 350 mm (automatic).

Weight:

• Net Weight: 400 kg.
• Gross Weight: 435 kg.

Packaging:

• Packaging Width (mm): 920.
• Packaging Length (mm): 1265.
• Packaging Height (mm): 1240.
