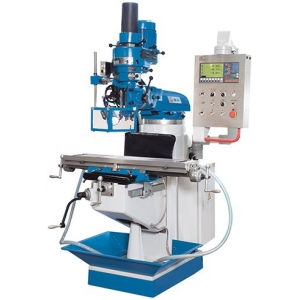

Designed for multi-purpose milling machines, the MF 1 is one of the best-selling milling machines in the world and indispensable in many workshops. The X-axis features a variable speed feed mechanism and an oscillating vertical milling head with a belt drive that provides a wide range of speeds when working with steel or other non-ferrous metals. Automatic pen feed and pneumatic tool clamping are also standard, as is a mounted position indicator. The entire series is an ideal choice for repair shops, training or production departments.

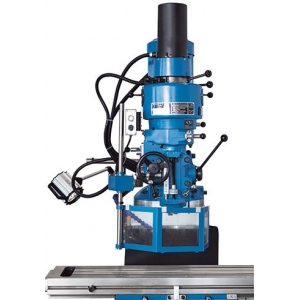

• Consumable tilting milling head with quill feed.

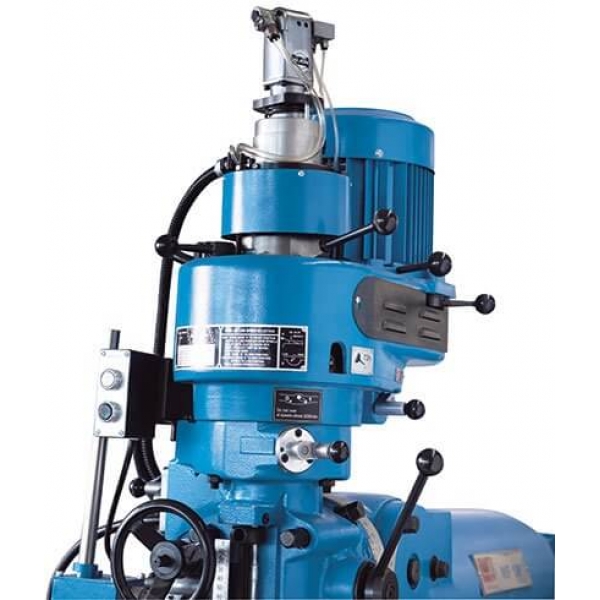

• Pneumatic tool clamping system.
• The milling head can be tilted in all 3 axes.
• Wide standard equipment.

More detailed description:

• The speed is changed by switching the gears of the two-level drive motor, or by selecting the desired transmission ratio in the belt drive (4 speeds are available for one level).
• Automatic table feed, type TV 1000 on X and Y axes, it can be easily removed and installed.

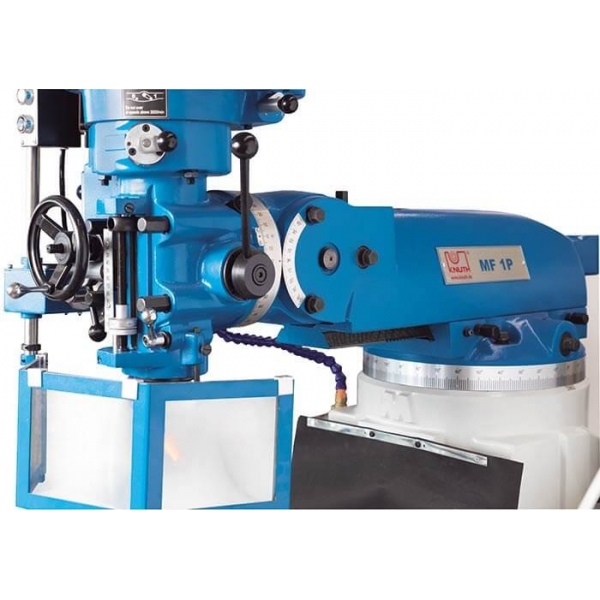

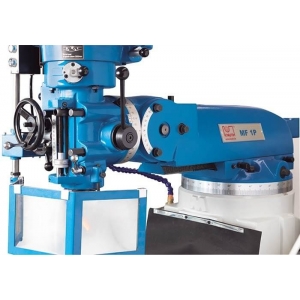

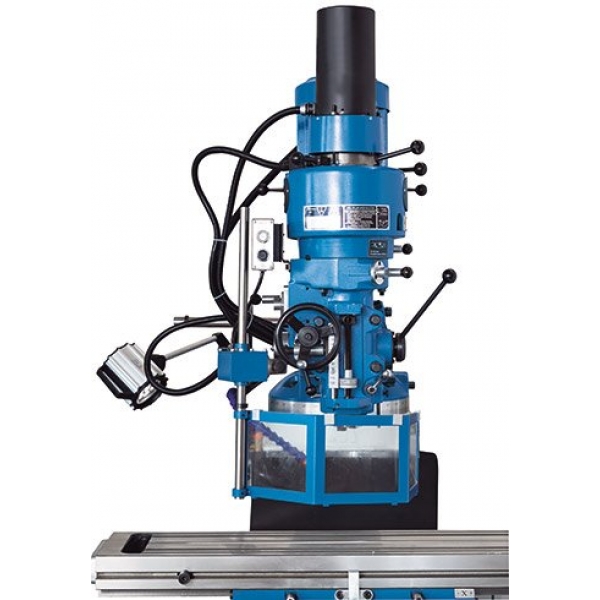

• The head bends, in the directions of three axes: tilt to L + L: +-90°; Tilt forward, backward: +-45°, turning around the column: +-45°.
• Folding guides, hardened and adjustable.
• 3 automatic drill feeds.
• Manual coarse feed for pens has been changed to manual fine feed.
• Pen with automatic micrometer depth stop.
• Shaft mounting ISO 30.
• Reverse gear shift lever, reverse direction of rotation.
• Manual spindle brakes

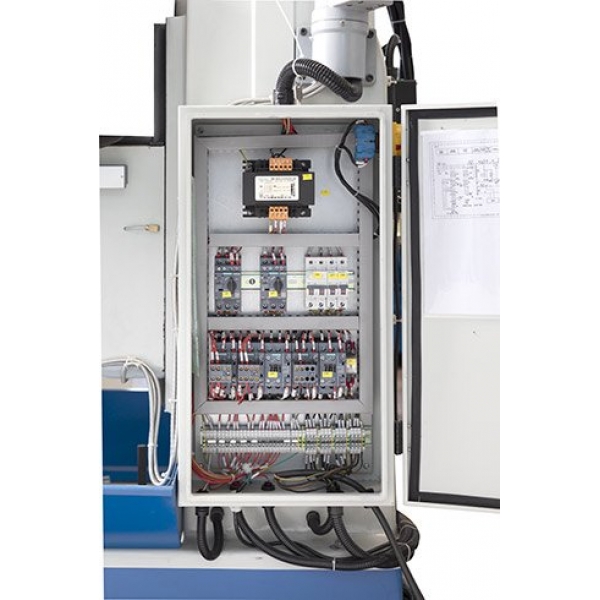

• A 3-axis position indicator, cooling system and LED workplace lighting are included as standard.

3 axis position indicator:

• Greater accuracy.
• Less chance of errors.
• Increased productivity.
• Saving important time.
• Easy to understand display.
• Operator specific functions.
• Convenient keyboard layout.
• Resolution: 0.01 / 0.005 mm.
• Default coordinates.
• Axis positions remain even when the display is turned off.
• Calculation of the circular modulus of the hole.
• Calculator function.
• Parts storage for up to 10 tools.
• Choice between radius and area, readings.
• Choice between mm / inch measurement units.
• Easy replenishment of the assortment and maintenance-free operations.

Technical data:

• Table set up area: 1060 x 230 mm
• Number of T-slots: 3 places
• T-slot, (width and spacing): 16 x 63.5 mm

• Travel, X-axis: 670 mm
• Travel, Y axis: 290 mm
• Travel, Z-axis: 370 mm

• Spindle speed: 80 1/min - 4500 1/min
• Quill stroke: 127 mm
• Spindle mount: ISO 30
• Throat: 171 – 476 mm

• Quill feeds: (3) 0.04; 0.08; 0.15 mm/R

• Power of the main electric motor: 2.2 kW

• Overall dimensions: 2000 x 1600 x 2090 mm
• Weight: 1100 kg

Standard equipment:

• 3 axis position indicator X.Pos 3.2
• Operating tools
• Cooling System
• Pneumatic clamping of tools
• Vertical guideway cover

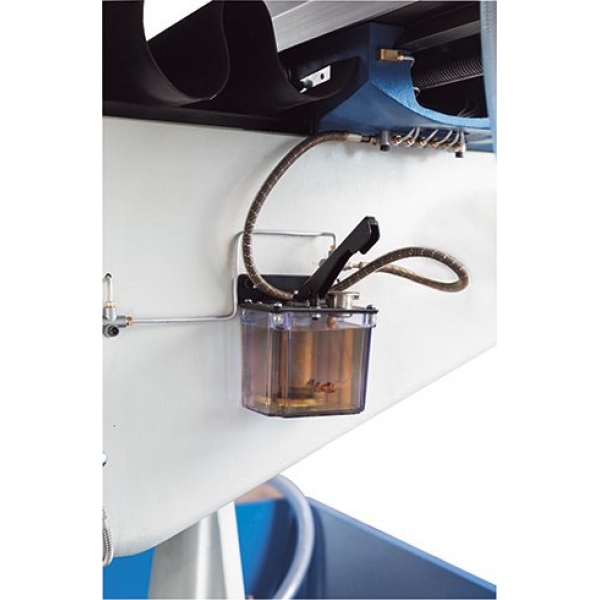

• Central lubrication
• LED makes a spot light
• Operator's manual
