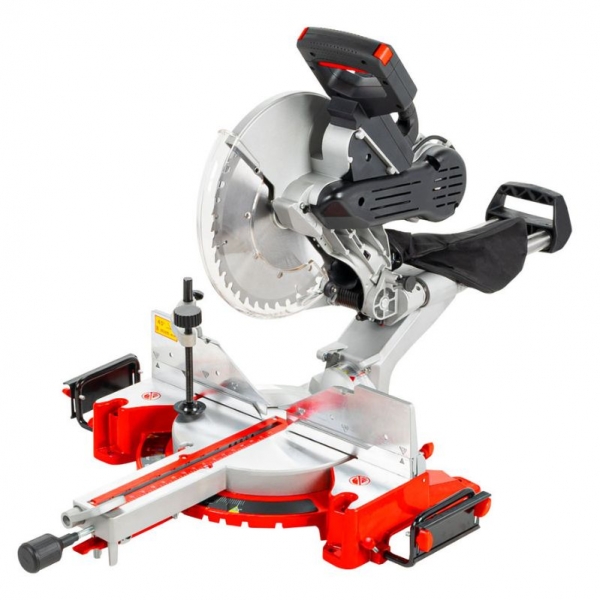

Mitre saw Holzmann KAP305JL_230V

Mitre saw Holzmann KAP305JL_230V

Country of origin: Austria, warranty period - 24 months

The Holzmann KAP305JL_230V is a professional mitre saw designed for precise angled cutting of wood, plastic, and other materials. The quiet belt drive system ensures smooth operation and durability. With a tilting and rotating saw head, this saw enables versatile cutting tasks, while the integrated laser and depth stop enhance cutting accuracy.

Functions:

• Belt drive system – quiet operation and smooth mechanical performance

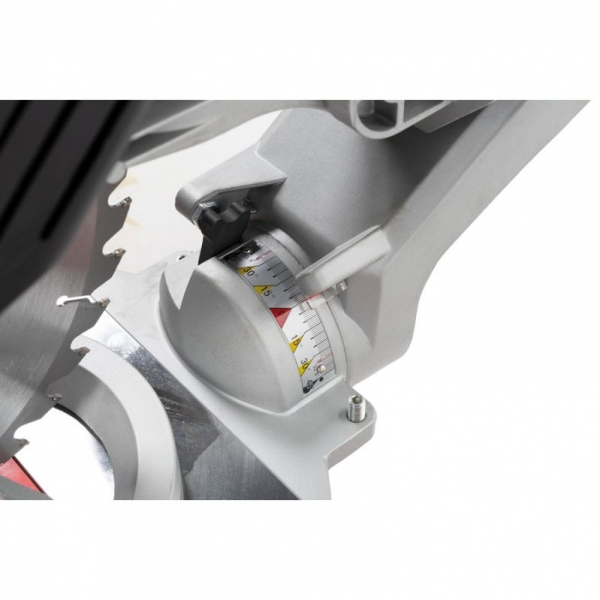

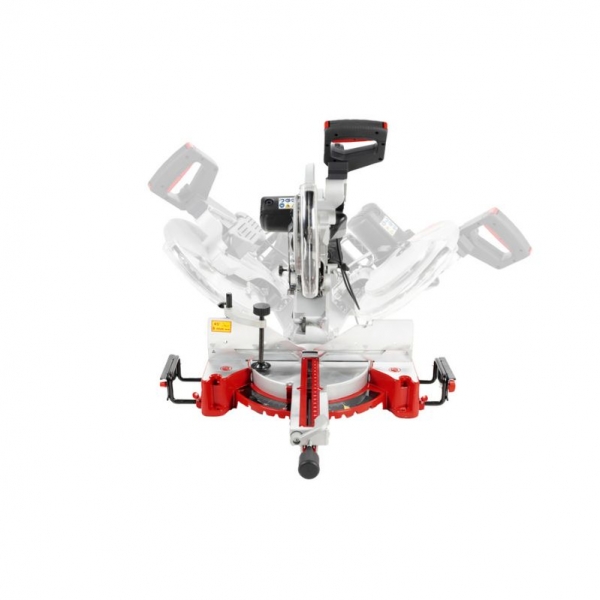

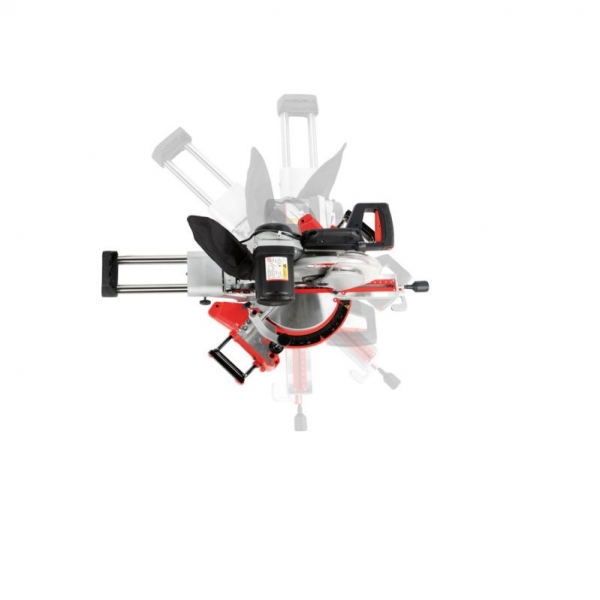

• Saw head tilts left/right (-45°/+45°) and rotates (-45° to +45°)
• Extendable rear fence

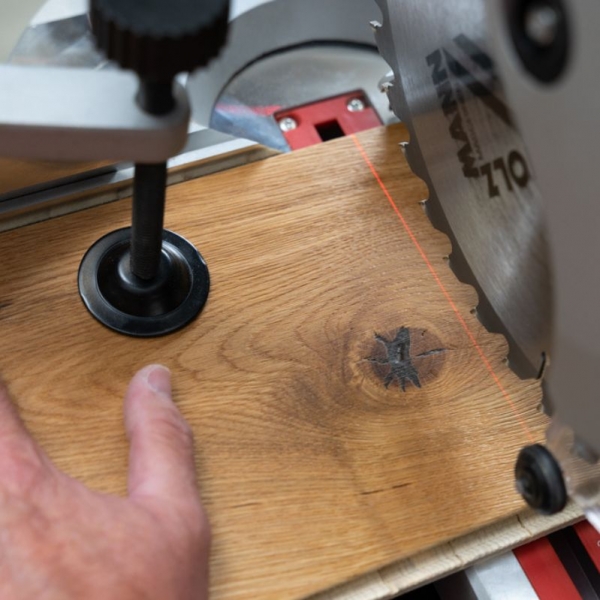

• Thin red laser line indicates cutting path
• Depth stop included

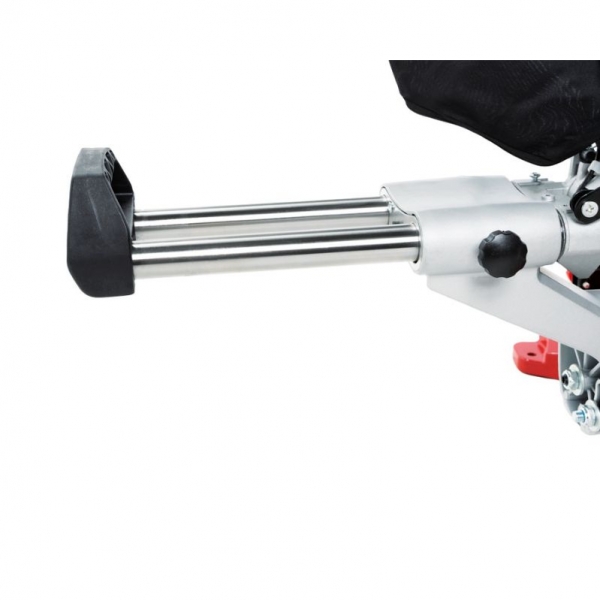

• Stable double-bar guide system for accuracy and stability
• Heavy-duty cast aluminum base for excellent stability
• Includes: tungsten carbide saw blade, laser, table extension

Technical specifications:

• Motor power S1: 1600 W
• Motor power S6 (25%): 2000 W
• Speed: 4200 min⁻¹
• Cable length: 1.2 m
• Protection class: IP 20

Dimensions:

• Dust extraction port: Ø 68 mm
• Overall dimensions: 895 x 900 x 700 mm

Cutting capacity:

• Max. cutting length 45°: 240 mm
• Max. cutting length 90°: 330 mm
• Max. cutting height 90°: 115 mm
• Max. cutting height 45°: 85 mm

Saw blade:

• Blade diameter: 305 mm
• Noise and vibration:
• Sound power level: 108 dB(A)
• Sound pressure level: 95 dB(A)

Weight:

• Net weight: 21 kg
• Gross weight: 25 kg

Packaging:

• Packaging height: 550 mm
• Packaging width: 520 mm
• Packaging length: 945 mm
