Description

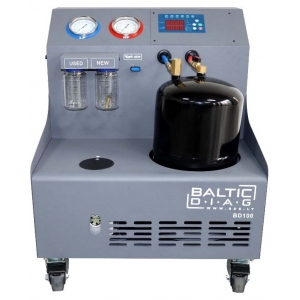

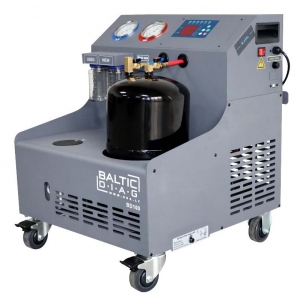

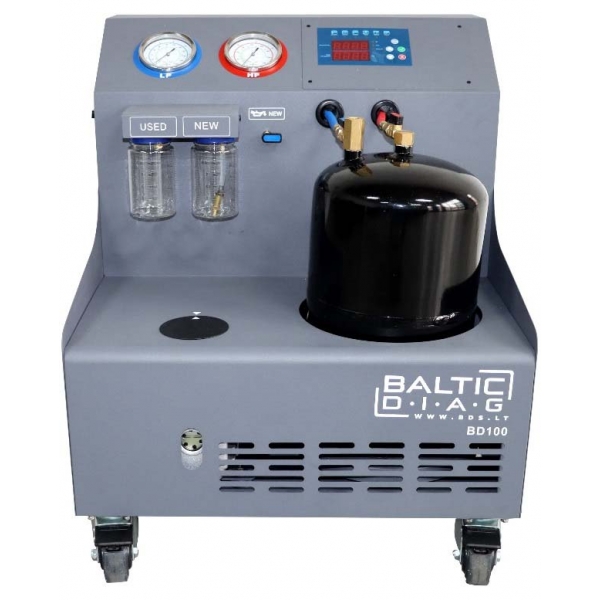

Mobile Air Conditioning Service Station BD100
Country of origin: China, warranty period - 24 months
BD100 is a mobile air conditioning service station designed for workshops or companies that provide outdoor air conditioning system maintenance services or have a limited budget. Its compact design allows for easy transportation in an SUV or pickup truck, making it an excellent solution for mobile work. Although the BD100 lacks some automatic functions, it stands out with its practicality, simple operation, and reliability.
Functions:
- Compact design – ideal for mobile services
- Automatic temperature calculation system
- Simple and intuitive operation
- Suitable for various working environments
- Easy maintenance
Performed functions:
- Refrigerant tank filling
- Refrigerant extraction
- Air conditioning system vacuuming
- Oil injection
- Air conditioning system charging
Technical specifications:
- Power supply: 230 V / 50 Hz / 1 phase
- Refrigerant type: R-134a
- Compressor power: 3/8 HP
- Vacuum pump: 60 l/min
- Vacuum time adjustment: 1 – 60 min
- Max. refrigerant extraction speed: 0.25 kg/min
- Max. refrigerant charging speed: 2 kg/min
- Tank accuracy: ±10 g
- Refrigerant tank capacity: 10 kg
- New oil tank capacity: 250 ml
- Used oil tank capacity: 250 ml
- Oil tank characteristics: transparent, manual oil filling
- Max. operating pressure: 20 bar
- High-pressure gauge range: -1 to 30 bar
- Low-pressure gauge range: -1 to 16 bar
- Tank pressure gauge range: -1 to 22 bar
- Weight: 58 kg
- Dimensions: 552 x 550 x 680 mm
- Package dimensions: 645 x 610 x 805 mm
- 3-meter-long hoses
