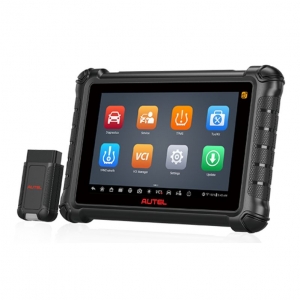

Universal diagnostic tool Autel MaxiCheck MX900TS

Universal diagnostic tool AUTEL MaxiCheck MX900TS

AUTEL MaxiCheck MX900TS is an advanced universal diagnostic device that combines professional full-system diagnostics with intelligent TPMS solutions. Designed for convenient use both in the workshop and for mobile diagnostics, it is a powerful tool for comprehensive vehicle maintenance.

Why choose AUTEL MaxiCheck MX900TS?

• Comprehensive diagnostics with TPMS functions.
• The MX900TS combines standard workshop diagnostic functions with advanced TPMS sensor control – from scanning to programming.
• Intuitive operation and mobility.
• The device features an 8" touchscreen and connects wirelessly to the vehicle via the MaxiVCI V150, making it convenient to use at any workstation.
• Wide compatibility.
• Compatible with most European, US and Asian vehicle manufacturers – ideal for workshops servicing different vehicle brands.
• Fast updates and support.
• Internet connectivity allows automatic system and software updates.
• Smart AutoVIN function.
• Quick and easy vehicle identification – faster workflow and fewer errors.
• All-in-one workspace.
• Manage diagnostic data, customer information and device settings from a single interface for maximum efficiency.

Features:

• Wide vehicle coverage, including European, US and Asian manufacturers.
• OE-level diagnostics for all electronic systems.
• Ability to read fault codes, view live data, access ECU engine control module information, perform active tests, adaptations and more.
• Supports DoIP and CAN FD protocols.
• Smart AutoVIN technology for easy and fast vehicle identification.
• Automatic system and software updates with direct internet access.
• Advanced TPMS diagnostics with fault descriptions.
• TPMS sensor data reading and one-touch sensor health check.
• Activation of all known TPMS sensors.
• Ability to program Autel MX sensors.
• Extensive OBD coverage.
• Unified workspace for managing diagnostic data, customer information and device settings.
• Support for pre-scan and post-scan diagnostic reports.

Technical specifications:

• Operating system: Android 11;
• Processor: 1.8 GHz quad-core;
• RAM: 4 GB;
• Internal storage: 64 GB ROM;
• Display: 8" LCD touchscreen with 1280 × 800 resolution;
• Rear camera: 8 MP;
• Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card with support up to 64 GB;
• Audio output: speaker;
• Battery: 3.7 V / 7700 mAh Li-ion battery;
• Charger: 5 V / 3 A / DC;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -10 °C to +60 °C;
• Dimensions: 259.87 × 168.98 × 33.60 mm;
• Weight: 998 g;
• Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD;
• VCI adapter communication: Bluetooth BR + EDR;
• VCI wireless frequency: 2.4 GHz;
• VCI input voltage: 8–30 V DC;
• VCI power consumption: 150 mA @ 12 V DC;
• VCI operating temperature: 0 °C to +50 °C;
• VCI storage temperature: -10 °C to +60 °C;
• VCI dimensions: 77.47 × 46.8 × 21.38 mm;
• VCI weight: 51.5 g.

Who is this device for?

• AUTEL MaxiCheck MX900TS is designed for professional automotive workshops, independent diagnostic specialists and service technicians looking for a multifunctional, reliable diagnostic tool with modern TPMS capabilities. It is ideal for both everyday tasks and more complex vehicle service operations.

Comparison table

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Ready to work faster, smarter and more efficiently?

• Try AUTEL MaxiCheck MX900TS in your workshop and experience how easy it is to work with modern, convenient and reliable equipment. Contact us today – we will help you choose the most suitable solution.
