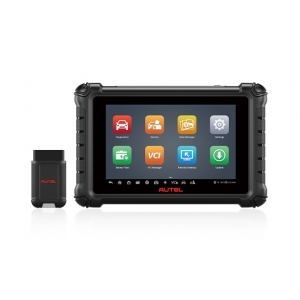

Universal wireless diagnostic tool Autel MaxiDAS DS900BT

Universal wireless diagnostic tool AUTEL MaxiDAS DS900BT

AUTEL MaxiDAS DS900BT is a universal and advanced diagnostic tablet that combines fast performance, comprehensive functionality and wireless connectivity to the vehicle. Equipped with Android, a powerful quad-core processor and the MaxiVCI V150 adapter, this tool enables in-depth vehicle analysis without cables. It is ideal for both system diagnostics and service functions — from fault code clearing to DPF regeneration.

Why choose AUTEL MaxiDAS DS900BT?

• Wireless connectivity with the vehicle.
• The included MaxiVCI V150 adapter provides a convenient Bluetooth connection, giving you more mobility during work.
• Comprehensive diagnostics in one device.
• Performs fault code scanning, active tests and live data monitoring across all systems for accurate fault detection.
• Advanced service functions.
• You can perform oil service reset, EPB, SAS, BMS, DPF, injector calibration and other special procedures without additional equipment.
• User-friendly and informative display.
• The 8-inch touchscreen allows you to view data clearly in both graphical and numeric formats.
• Quick vehicle identification.
• AutoVIN technology automatically recognizes the vehicle manufacturer, model and year, allowing diagnostics to start in just a few seconds.
• Pre- and post-diagnostic reports.
• Easily generate a detailed report on the vehicle’s condition before and after repair — especially useful for customer service.

Features:

• 8" LCD touchscreen with 1280 × 800 resolution.
• MaxiVCI V150 wireless adapter.
• Full fault code scanning and clearing for all available systems.
• Real-time parameter display in numeric or graphical format for easier data interpretation.
• Supports DoIP and CAN FD protocols.
• AutoVIN technology for automatic identification of the vehicle manufacturer, model and production year in a very short time.
• Supports pre-scan and post-scan reports.
• Service interval and mileage reset.
• Electronic parking brake release and position reset after brake pad replacement.
• Forced DPF regeneration and injector calibration.
• Battery registration and parameter reset support.
• Steering angle sensor parameter reset.

Technical specifications:

• Operating system: Android 11;
• Processor: 1.8 GHz quad-core;
• RAM: 4 GB;
• Internal storage: 64 GB ROM;
• Display: 8" LCD touchscreen with 1280 × 800 resolution;
• Camera: rear-facing 8 MP camera;
• Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card with support up to 64 GB;
• Audio output: speaker;
• Battery: 3.7 V / 7700 mAh Li-ion battery;
• Charger: 5 V / 3 A / DC;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -10 °C to +60 °C;
• Dimensions: 168.9 × 259.8 × 33.6 mm;
• Weight: 925 g;
• Supported protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD;
• VCI adapter communication: Bluetooth BR + EDR;
• VCI wireless frequency: 2.4 GHz;
• VCI input voltage: 8–30 V DC;
• VCI power consumption: 150 mA @ 12 V DC;
• VCI operating temperature: 0 °C to +50 °C;
• VCI storage temperature: -10 °C to +60 °C;
• VCI dimensions: 77.47 × 46.8 × 21.38 mm;
• VCI weight: 51.5 g.

Who is this device for?

• AUTEL MaxiDAS DS900BT is ideal for professional automotive workshops, diagnostic workshops and independent service technicians looking for a fast, modern and wireless solution for everyday and complex diagnostic tasks. Versatility and speed are combined with convenience and data accuracy.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Save time and avoid unnecessary errors — with modern equipment!

• Try AUTEL MaxiDAS DS900BT — a wireless diagnostic tool that saves time and increases efficiency. Contact us — we will help you find the most suitable solution for your workshop.
