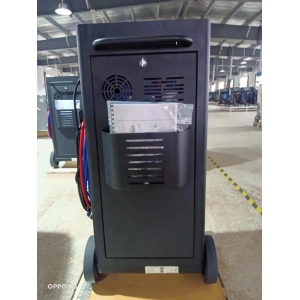

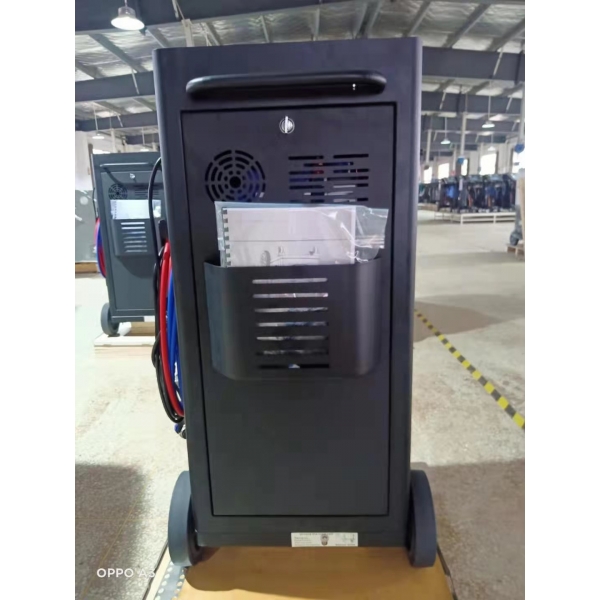

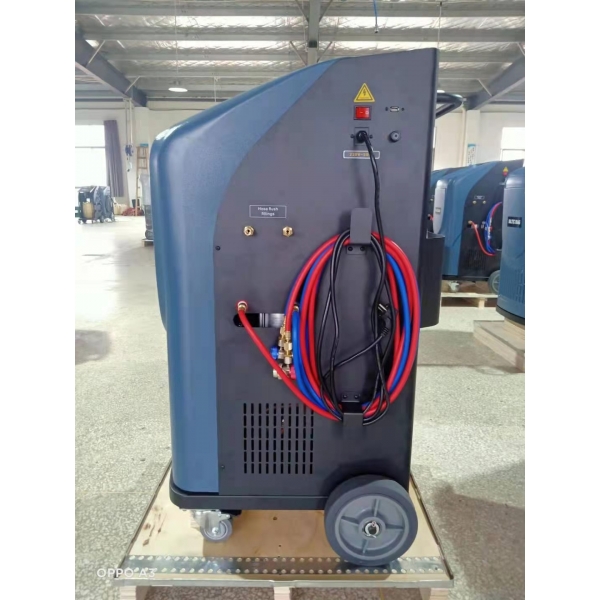

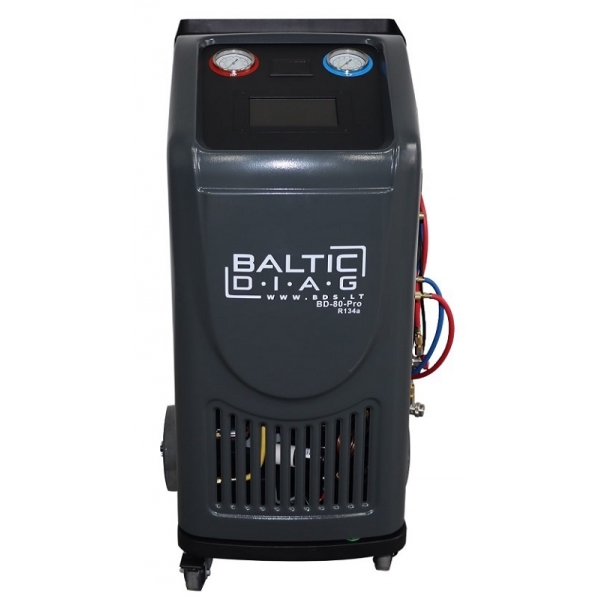

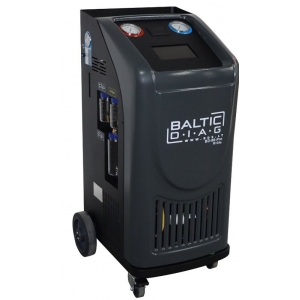

Automatic Air Conditioning Service Station BD-80 PRO
Country of origin: China, warranty period - 24 months
BD-80 PRO is a fully automated air conditioning service station designed for professional use with R-134a refrigerant in both passenger and commercial vehicle A/C systems. The unit features a touchscreen display, integrated printer, automatic control of all main functions, and a built-in database with thousands of vehicle models. It is a highly reliable solution for workshops seeking fast, accurate, and safe A/C system servicing.
The entire interface of the A/C station is available in Lithuanian, and additionally includes over 20 other popular languages: English, Russian, Polish, Estonian, German, French, Spanish, and more.
Functions:
- Automatic operation mode
- Automatic refrigerant recovery
- Automatic refrigerant charging
- Automatic oil extraction
- Automatic vacuuming
- Automatic leak test
- Automatic service reminder

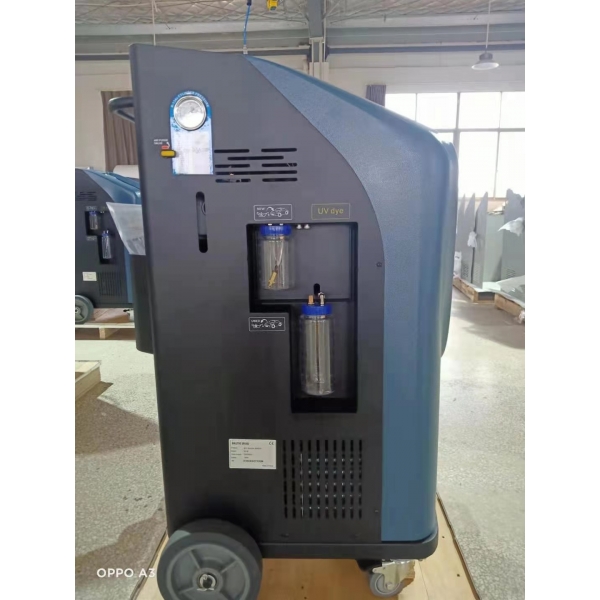

- UV agent injection
- Vacuum leak testing
- Integrated printer
- Condenser with cooling fan

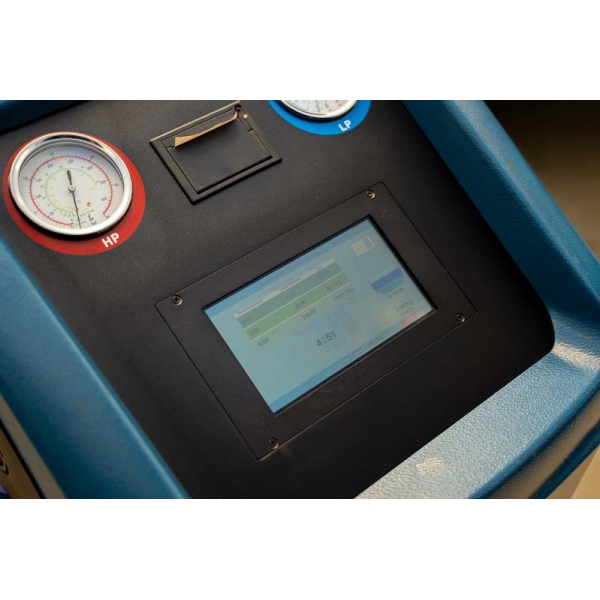

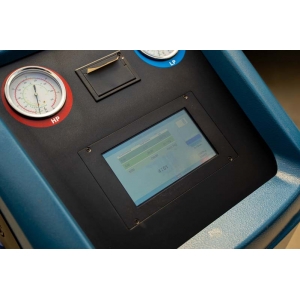

- Touchscreen color display
- Database with free updates
- Hose cleaning program
- Integrated electronic oil tank scales
- Simple calibration of electronic scales
Technical specifications:
- Refrigerant type: R134a
- Manual control valves: 2
- Display: 7" color touchscreen
- Refrigerant tank capacity: 13.6 kg
- Accuracy: ±10 g
- Refrigerant charging speed: 2000 g/min
- Recovery speed: 250 g/min
- HP gauge range: -130 bar
- LP gauge range: -116 bar
- Recovery efficiency: ≥95%
- Compressor power: 3/8 HP
- Vacuum pump speed: 120 l/min
- Number of oil bottles: 3
- New oil bottle capacity: 250 ml
- Used oil bottle capacity: 400 ml
- Measurement accuracy for new/used oil and UV: ±5 g
- Power supply: 220V 50/60Hz
- Power consumption: 280W
- Maximum pressure: 20 bar
- Dimensions: 560 x 630 x 1070 mm
