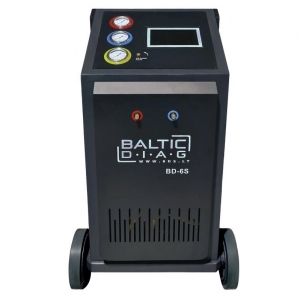

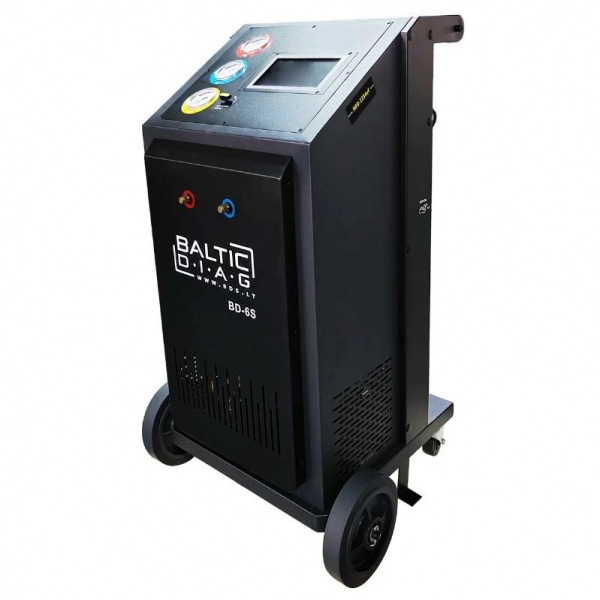

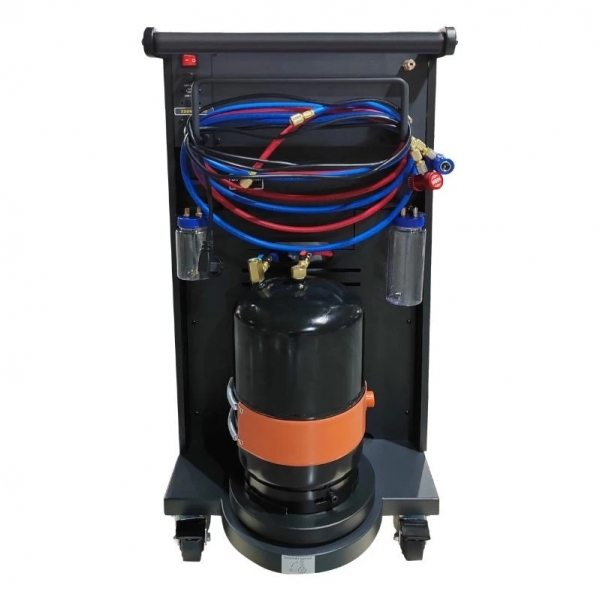

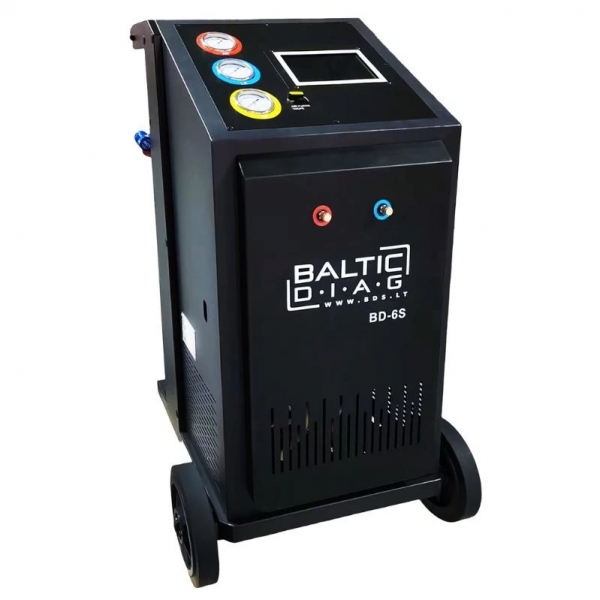

Automatic air conditioning recharge station BD-6S

Automatic air conditioning recharge station BD-6S

Country of origin: China, warranty period – 24 months

The BD-6S is a fully automatic air conditioning recharge station designed for use with R134a or R1234yf refrigerants. This unit is ideal for both beginner and experienced workshop professionals looking to service automotive A/C systems professionally. The option to select the desired refrigerant before operation allows the station to be adapted to different customer needs.

Features

• Automatic refrigerant charging
• Refrigerant recovery
• System vacuuming
• Oil injection (note: oil is supplied manually by opening a valve)
• Internal cylinder refilling
• Fully automatic operation mode
• Built-in heating belt
• Automatic control valves
• Hose cleaning program
• Integrated database with free updates
• Built-in pipelines and fans for condensation and cooling
• Pressure generation for used oil extraction
• Automatic maintenance reminder
• Simple calibration of electronic scales
• Compatible with electric and hybrid vehicles (with additional equipment)

Technical specifications

• Input voltage: 230 V / 50–60 Hz / 1 phase
• Refrigerant recovery efficiency: > 95 %
• Compressor power: 3/8 HP
• Vacuum pump capacity: 120 l/min
• Compatible refrigerants: R134a or R1234yf
• Refrigerant scale accuracy: ±10 g
• Cylinder capacity: 12 kg
• Number of oil containers: 2 (new – 250 ml, used – 400 ml)
• Maximum operating pressure: 20 bar
• Charging speed: up to 2 kg/min
• Average refrigerant recovery speed: 250 g/min
• Display: 7-inch touchscreen
• High pressure gauge: 1–30 bar
• Low pressure gauge: 1–16 bar
• Dimensions: 630 × 670 × 1060 mm
• Package dimensions: 750 × 670 × 1160 mm
