- Mobile air conditioner filling station with washing function BD100Plus

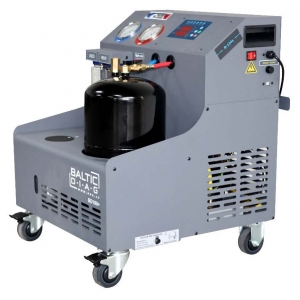

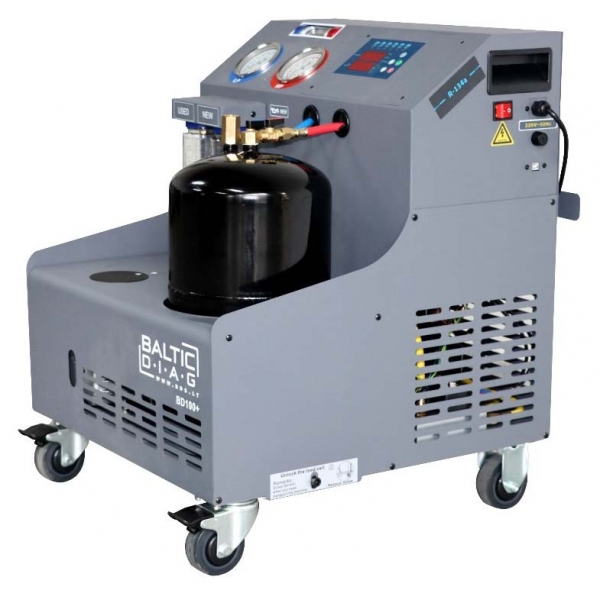

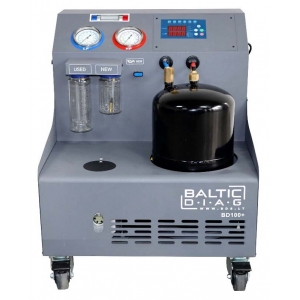

Mobile air conditioner filling station with washing function BD100Plus
Mobile air conditioner filling station with washing function BD100Plus
- SKU: BD16984
- SKU:: AC100+
1,210.00 €
Papildomai galite užsakyti:
| 17.93 € | Cuff set for air conditioner repair (HNBR, 225 pcs) | |||
| 969.00 € | 1,125.00 € | Refrigerant R-134a composition identifier BD86 |
Send Message
Inquiry for the Vilnius region
Description
Mobile air conditioning service station with flushing function BD100Plus
Country of origin: China, warranty period - 24 months
The BD100Plus mobile air conditioning service station with a flushing function is designed for workshops seeking an economical, compact, and versatile solution for air conditioning system maintenance. This unit is especially suitable for mobile services or workshops with limited budgets. Simple operation, a design adapted for transportation, and essential functions allow efficient performance of all main tasks in outdoor conditions or small spaces.
Functions:
- Refrigerant recovery
- Refrigerant charging
- Air conditioning system vacuuming
- Oil injection (manual)
- Air conditioning system flushing
- Automatic temperature calculation system
- Adjustable vacuuming and flushing time
- Easy operation and maintenance
Technical specifications:
- Power supply: 230 V / 50 Hz / 1 phase
- Refrigerant type: R-134a
- Compressor power: 3/8 HP
- Vacuum pump: 60 l/min
- Vacuuming time: 1–60 min
- Maximum refrigerant recovery rate: 0.25 kg/min
- Maximum refrigerant charging rate: 2 kg/min
- Refrigerant charging accuracy: ±10 g
- Refrigerant tank capacity: 10 kg
- New oil tank capacity: 250 ml
- Used oil tank capacity: 400 ml
- Oil filling: manual, highly transparent containers
- Maximum working pressure: 20 bar
- High-pressure gauge range: -1 to 30 bar
- Low-pressure gauge range: -1 to 16 bar
- Tank pressure gauge range: -1 to 22 bar
- System flushing duration: 1–60 min
- Weight: 58 kg
- Dimensions: 552 x 550 x 680 mm
- Package dimensions: 645 x 610 x 805 mm
- Hose length: 3 m
